パート 5: Network Policy

対応バージョン: Calico v3.29+ / Kubernetes 1.28+ 最終更新: February 23, 2026

はじめに

Network Policy は Kubernetes セキュリティの基本要素であり、Pod、namespace、外部 endpoint 間のトラフィックフローを制御します。Kubernetes は基本的な NetworkPolicy API を提供しますが、Calico は Global Policy、階層化された Policy 評価、DNS ベースのルール、Layer 7 フィルタリングなどの強力な機能でこれを拡張します。

この詳細解説では、Kubernetes 標準 Policy と Calico の拡張機能の両方を取り上げ、エンタープライズのセキュリティ要件に対応するパターンと例を紹介します。

---

Kubernetes 標準 NetworkPolicy

NetworkPolicy の基礎

Kubernetes NetworkPolicy は namespace スコープのリソースであり、label、namespace、IP block に基づいて Pod への、および Pod からのトラフィックを制御します。

基本的な NetworkPolicy 構造

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: example-policy
  namespace: default
spec:
  # Which pods this policy applies to
  podSelector:
    matchLabels:
      app: web

  # Policy types: Ingress, Egress, or both
  policyTypes:
    - Ingress
    - Egress

  # Ingress rules (who can connect TO these pods)
  ingress:
    - from:
        - podSelector:
            matchLabels:
              app: frontend
        - namespaceSelector:
            matchLabels:
              purpose: monitoring
        - ipBlock:
            cidr: 10.0.0.0/8
            except:
              - 10.0.1.0/24
      ports:
        - protocol: TCP
          port: 8080

  # Egress rules (where these pods can connect TO)
  egress:
    - to:
        - podSelector:
            matchLabels:
              app: database
      ports:
        - protocol: TCP
          port: 5432

Kubernetes NetworkPolicy の制限事項

制限事項	説明	Calico の解決策
Namespace スコープのみ	クラスター全体の Policy を作成できない	GlobalNetworkPolicy
Policy の順序付けなし	すべての Policy が同等に評価される	階層化 Policy
Deny ルールなし	Allow のみ（暗黙的な Deny）	明示的な Deny action
限定的な L4 フィルタリング	基本的な port/protocol のみ	Port 範囲、名前付き port
L7 フィルタリングなし	HTTP method でフィルタリングできない	HTTP match ルール
FQDN サポートなし	domain name を使用できない	DNS Policy
Pod 中心のみ	node を保護できない	Host endpoint

---

Calico NetworkPolicy 拡張機能

拡張 Protocol サポート

Calico は TCP と UDP 以外の追加 Protocol をサポートします。

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: extended-protocols
  namespace: default
spec:
  selector: app == 'network-tools'

  ingress:
    # ICMP ping
    - action: Allow
      protocol: ICMP
      icmp:
        type: 8  # Echo Request
        code: 0

    # ICMPv6
    - action: Allow
      protocol: ICMPv6
      icmp:
        type: 128  # Echo Request

    # SCTP
    - action: Allow
      protocol: SCTP
      destination:
        ports:
          - 3868  # Diameter

    # UDP with port range
    - action: Allow
      protocol: UDP
      destination:
        ports:
          - 5000:6000  # Port range

Port 範囲と名前付き Port

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: port-examples
  namespace: default
spec:
  selector: app == 'multi-port-app'

  ingress:
    # Port range
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - 8080:8090

    # Named ports (from pod spec)
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - http      # References containerPort name
          - metrics   # References containerPort name

    # Mix of specific ports and ranges
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - 22
          - 80
          - 443
          - 3000:3100

強化された Selector 構文

Calico は Kubernetes よりも表現力の高い selector 構文を使用します。

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: selector-examples
  namespace: production
spec:
  # Label equality
  selector: app == 'web'

  ingress:
    # Set membership
    - action: Allow
      source:
        selector: app in {'frontend', 'api-gateway', 'monitoring'}

    # Negation
    - action: Allow
      source:
        selector: app != 'untrusted'

    # Label existence
    - action: Allow
      source:
        selector: has(security-cleared)

    # Combining conditions (AND)
    - action: Allow
      source:
        selector: app == 'backend' && tier == 'internal'

    # Complex expression (OR via multiple rules)
    - action: Allow
      source:
        selector: (app == 'frontend') || (app == 'api')

    # Namespace selector
    - action: Allow
      source:
        namespaceSelector: environment == 'production'
        selector: app == 'authorized-client'

---

GlobalNetworkPolicy

GlobalNetworkPolicy はすべての namespace に適用され、クラスター全体のセキュリティルールに最適です。

GlobalNetworkPolicy の構造

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: cluster-wide-deny-egress
spec:
  # Applies to all pods (empty selector)
  selector: all()

  # Order determines priority (lower = higher priority)
  order: 1000

  types:
    - Egress

  egress:
    # Block access to metadata service
    - action: Deny
      destination:
        nets:
          - 169.254.169.254/32

    # Block access to internal DNS except kube-dns
    - action: Deny
      protocol: UDP
      destination:
        ports:
          - 53
        notSelector: k8s-app == 'kube-dns'

一般的な GlobalNetworkPolicy パターン

すべてのトラフィックをデフォルトで Deny:

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: default-deny-all
spec:
  selector: all()
  order: 10000  # Lowest priority
  types:
    - Ingress
    - Egress

  # Empty rules = deny all
  ingress: []
  egress: []

必須 Service を Allow:

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: allow-essential-services
spec:
  selector: all()
  order: 100
  types:
    - Egress

  egress:
    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

    # Allow Kubernetes API
    - action: Allow
      protocol: TCP
      destination:
        nets:
          - 10.96.0.1/32  # ClusterIP of kubernetes service
        ports:
          - 443

機密性の高い Namespace をブロック:

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: protect-kube-system
spec:
  namespaceSelector: kubernetes.io/metadata.name == 'kube-system'
  order: 50
  types:
    - Ingress

  ingress:
    # Only allow from pods with explicit access
    - action: Allow
      source:
        selector: has(kube-system-access)

    # Allow from kube-system itself
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'kube-system'

    # Deny everything else (implicit)

---

NetworkSet と GlobalNetworkSet

NetworkSet は Policy 間で再利用するための IP address をグループ化します。

NetworkSet（Namespace スコープ）

apiVersion: projectcalico.org/v3
kind: NetworkSet
metadata:
  name: corporate-networks
  namespace: default
  labels:
    network-type: corporate
spec:
  nets:
    - 10.0.0.0/8
    - 172.16.0.0/12
    - 192.168.0.0/16

---
# Reference in policy
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: allow-corporate
  namespace: default
spec:
  selector: app == 'internal-app'

  ingress:
    - action: Allow
      source:
        selector: network-type == 'corporate'  # References NetworkSet by label

GlobalNetworkSet（クラスター スコープ）

apiVersion: projectcalico.org/v3
kind: GlobalNetworkSet
metadata:
  name: external-trusted-ips
  labels:
    network-group: external-trusted
spec:
  nets:
    - 203.0.113.0/24     # Partner network
    - 198.51.100.0/24    # CDN network
    - 192.0.2.50/32      # Specific trusted IP

---
apiVersion: projectcalico.org/v3
kind: GlobalNetworkSet
metadata:
  name: blocked-countries
  labels:
    network-group: blocked
spec:
  nets:
    # Country IP ranges to block
    - 1.2.3.0/24
    - 5.6.7.0/24

---
# Reference in GlobalNetworkPolicy
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: external-access-control
spec:
  selector: has(external-facing)
  order: 200
  types:
    - Ingress

  ingress:
    # Allow trusted external
    - action: Allow
      source:
        selector: network-group == 'external-trusted'

    # Block known bad actors
    - action: Deny
      source:
        selector: network-group == 'blocked'

---

階層化 Policy

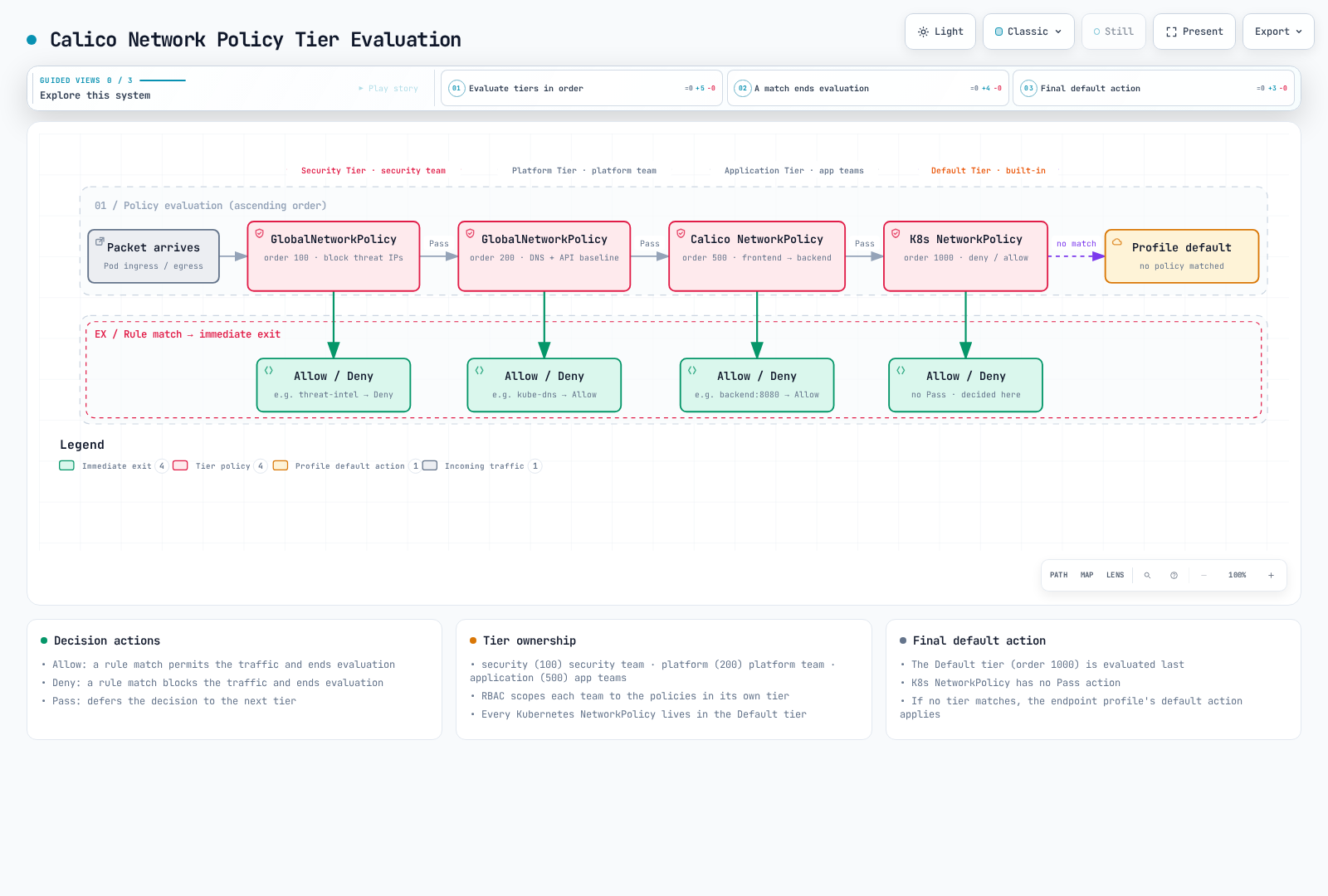

Calico Policy の Tier 評価: パケットは Security（100）、Platform（200）、Application（500）、Default の Tier を順に通過します。Allow または Deny で評価は終了し、Pass は次の Tier に渡し、一致しない場合は profile のデフォルトにフォールスルーします。全画面で開く ↗

Tier は階層的な Policy 評価を提供し、platform、security、application team 間の関心の分離を実現します。

Policy 評価順序

Tier の作成

# Security team tier (highest priority)
apiVersion: projectcalico.org/v3
kind: Tier
metadata:
  name: security
spec:
  order: 100

---
# Platform team tier
apiVersion: projectcalico.org/v3
kind: Tier
metadata:
  name: platform
spec:
  order: 200

---
# Application team tier
apiVersion: projectcalico.org/v3
kind: Tier
metadata:
  name: application
spec:
  order: 500

---
# Default tier (lowest priority, auto-created)
# order: 1000

階層化 Policy の例

# Security tier: Block known threats
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: security.block-threats
spec:
  tier: security
  order: 100
  selector: all()
  types:
    - Ingress
    - Egress

  ingress:
    - action: Deny
      source:
        selector: network-group == 'threat-intel'

  egress:
    - action: Deny
      destination:
        selector: network-group == 'malware-c2'

    # Pass to next tier for further evaluation
    - action: Pass

---
# Platform tier: Enforce baseline connectivity
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: platform.baseline
spec:
  tier: platform
  order: 100
  selector: all()
  types:
    - Egress

  egress:
    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

    # Allow Kubernetes API
    - action: Allow
      protocol: TCP
      destination:
        services:
          name: kubernetes
          namespace: default

    # Pass to application tier
    - action: Pass

---
# Application tier: Team-specific policies
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: application.frontend-rules
  namespace: production
spec:
  tier: application
  order: 100
  selector: app == 'frontend'
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'ingress-nginx'

  egress:
    - action: Allow
      destination:
        selector: app == 'backend'
        ports:
          - 8080

Tier RBAC 統合

# ClusterRole for security team
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: security-team-policy-admin
rules:
  - apiGroups: ["projectcalico.org"]
    resources: ["globalnetworkpolicies", "tiers"]
    verbs: ["*"]
    # Can only manage policies in security tier
    resourceNames: ["security.*"]

---
# ClusterRole for application teams
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: app-team-policy-admin
rules:
  - apiGroups: ["projectcalico.org"]
    resources: ["networkpolicies"]
    verbs: ["*"]
  - apiGroups: ["projectcalico.org"]
    resources: ["tiers"]
    verbs: ["get", "list"]
    resourceNames: ["application"]

---

FQDN ベースの Egress Policy

Calico は domain name に基づいて Egress トラフィックをフィルタリングできます。これは外部 Service へのアクセス制御に役立ちます。

DNS Policy の設定

まず、Felix で DNS Policy を有効にします。

apiVersion: projectcalico.org/v3
kind: FelixConfiguration
metadata:
  name: default
spec:
  dnsTrustedServers:
    - k8s-service:kube-system/kube-dns
  policySyncPathPrefix: /var/run/nodeagent

FQDN Egress ルール

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: allow-specific-domains
spec:
  selector: app == 'external-api-client'
  order: 500
  types:
    - Egress

  egress:
    # Allow specific domains
    - action: Allow
      destination:
        domains:
          - api.github.com
          - "*.amazonaws.com"
          - registry.npmjs.org
      protocol: TCP
      destination:
        ports:
          - 443

    # Allow Google APIs
    - action: Allow
      destination:
        domains:
          - "*.googleapis.com"
          - "*.google.com"
      protocol: TCP
      destination:
        ports:
          - 443

    # Deny all other external
    - action: Deny
      destination:
        notNets:
          - 10.0.0.0/8
          - 172.16.0.0/12
          - 192.168.0.0/16

Wildcard Domain パターン

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: dns-wildcards
spec:
  selector: all()
  egress:
    # Single wildcard - matches any subdomain
    - action: Allow
      destination:
        domains:
          - "*.example.com"     # Matches api.example.com, www.example.com

    # Does NOT match
    # example.com (no subdomain)
    # deep.sub.example.com (multiple levels)

---

HTTP Method フィルタリング（Layer 7）

Calico Enterprise と Calico Cloud は HTTP トラフィック向けの Layer 7 Policy をサポートします。

HTTP Match ルール

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: l7-http-policy
spec:
  selector: app == 'api-server'
  order: 300
  types:
    - Ingress

  ingress:
    # Allow only GET and HEAD for read-only clients
    - action: Allow
      source:
        selector: role == 'reader'
      http:
        methods:
          - GET
          - HEAD
        paths:
          - prefix: /api/v1/

    # Allow full access for admin clients
    - action: Allow
      source:
        selector: role == 'admin'
      http:
        methods:
          - GET
          - POST
          - PUT
          - DELETE
          - PATCH

    # Allow health checks
    - action: Allow
      http:
        methods:
          - GET
        paths:
          - exact: /health
          - exact: /ready

Path ベースのフィルタリング

apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: path-based-policy
  namespace: production
spec:
  selector: app == 'web-app'

  ingress:
    # Public endpoints
    - action: Allow
      http:
        paths:
          - prefix: /public/
          - exact: /

    # Admin endpoints - restricted
    - action: Allow
      source:
        selector: role == 'admin'
      http:
        paths:
          - prefix: /admin/

    # API endpoints - authenticated only
    - action: Allow
      source:
        selector: has(api-access)
      http:
        paths:
          - prefix: /api/

---

Host Endpoint 保護

Host endpoint は Pod だけでなく、node 自体への、および node 自体からのトラフィックを保護します。

Host Endpoint の有効化

apiVersion: projectcalico.org/v3
kind: FelixConfiguration
metadata:
  name: default
spec:
  defaultEndpointToHostAction: Drop  # or Accept, Return

Host Endpoint の定義

apiVersion: projectcalico.org/v3
kind: HostEndpoint
metadata:
  name: node1-eth0
  labels:
    host: node1
    interface: external
spec:
  interfaceName: eth0
  node: node1
  expectedIPs:
    - 10.0.1.10

---
# Policy for host endpoints
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: host-ssh-policy
spec:
  selector: interface == 'external'
  order: 100
  types:
    - Ingress

  ingress:
    # Allow SSH from bastion
    - action: Allow
      protocol: TCP
      source:
        nets:
          - 10.0.0.100/32  # Bastion IP
      destination:
        ports:
          - 22

    # Allow kubelet API from control plane
    - action: Allow
      protocol: TCP
      source:
        selector: has(control-plane)
      destination:
        ports:
          - 10250

    # Allow node exporter metrics
    - action: Allow
      protocol: TCP
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'monitoring'
        selector: app == 'prometheus'
      destination:
        ports:
          - 9100

Auto Host Endpoint

すべての node に対する Host endpoint を自動的に作成します。

apiVersion: projectcalico.org/v3
kind: FelixConfiguration
metadata:
  name: default
spec:
  defaultEndpointToHostAction: Drop

---
apiVersion: operator.tigera.io/v1
kind: Installation
metadata:
  name: default
spec:
  calicoNetwork:
    hostPorts: Enabled  # Creates auto host endpoints

---

DoNotTrack と PreDNAT Policy

DoNotTrack Policy

DoNotTrack Policy は connection tracking をバイパスするため、高スループットのシナリオに役立ちます。

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: high-throughput-no-track
spec:
  selector: app == 'load-balancer'
  order: 10
  types:
    - Ingress
    - Egress

  doNotTrack: true
  applyOnForward: true

  ingress:
    - action: Allow
      protocol: TCP
      destination:
        ports:
          - 80
          - 443

  egress:
    - action: Allow

PreDNAT Policy

PreDNAT Policy は destination NAT の前に適用され、NodePort アクセスの制御に役立ちます。

apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: restrict-nodeport-access
spec:
  selector: has(kubernetes.io/os)  # Applies to host endpoints
  order: 100
  types:
    - Ingress

  preDNAT: true
  applyOnForward: true

  ingress:
    # Allow NodePort access only from trusted networks
    - action: Allow
      protocol: TCP
      source:
        nets:
          - 10.0.0.0/8
      destination:
        ports:
          - 30000:32767  # NodePort range

    # Deny NodePort from everywhere else
    - action: Deny
      protocol: TCP
      destination:
        ports:
          - 30000:32767

---

Policy のデバッグ

calicoctl の使用

# List all policies
calicoctl get networkpolicy -A
calicoctl get globalnetworkpolicy

# Get policy details
calicoctl get networkpolicy my-policy -n default -o yaml

# Describe endpoints affected by a policy
calicoctl get workloadendpoint -o wide

# Check policy selectors
calicoctl get networkpolicy -o yaml | grep -A5 selector

iptables ルールの確認

# View Calico chains
iptables -L -n -v | grep -i cali

# View filter table
iptables -t filter -L -n -v

# View NAT table
iptables -t nat -L -n -v

# Count packets by rule
iptables -L cali-fw-xxxxx -n -v

# Watch traffic in real-time
watch -n 1 'iptables -L cali-fw-xxxxx -n -v'

Felix ログ

# View Felix logs
kubectl logs -n kube-system -l k8s-app=calico-node -c calico-node | grep -i policy

# Increase log verbosity
calicoctl patch felixconfiguration default -p '{"spec":{"logSeverityScreen":"Debug"}}'

# Check policy sync status
kubectl exec -n kube-system calico-node-xxxxx -c calico-node -- calico-node -felix-ready

Policy 評価フローのデバッグ

# Get workload endpoint details
calicoctl get workloadendpoint -n default --selector='app==web' -o yaml

# Check which policies apply
calicoctl get networkpolicy -A -o yaml | grep -B20 "app.*web"

# Test connectivity
kubectl exec -it test-pod -- nc -zv target-pod 8080

---

一般的な Policy パターン ライブラリ

Microservices パターン

# Frontend -> Backend -> Database
---
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: frontend-policy
  namespace: production
spec:
  selector: app == 'frontend'
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'ingress-nginx'

  egress:
    - action: Allow
      destination:
        selector: app == 'backend'
        ports:
          - 8080

---
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: backend-policy
  namespace: production
spec:
  selector: app == 'backend'
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'frontend'
        ports:
          - 8080

  egress:
    - action: Allow
      destination:
        selector: app == 'database'
        ports:
          - 5432

---
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: database-policy
  namespace: production
spec:
  selector: app == 'database'
  types:
    - Ingress

  ingress:
    - action: Allow
      source:
        selector: app == 'backend'
        ports:
          - 5432

Multi-Tenant 分離

# Each tenant namespace is fully isolated
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: tenant-isolation
spec:
  namespaceSelector: has(tenant)
  order: 500
  types:
    - Ingress
    - Egress

  ingress:
    # Allow same-tenant traffic
    - action: Allow
      source:
        namespaceSelector: tenant == "$(namespace.tenant)"

  egress:
    # Allow same-tenant traffic
    - action: Allow
      destination:
        namespaceSelector: tenant == "$(namespace.tenant)"

    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

Zero Trust パターン

# Default deny everything
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: zero-trust-default-deny
spec:
  selector: all()
  order: 10000
  types:
    - Ingress
    - Egress
  ingress: []
  egress: []

---
# Explicit allow for each service
apiVersion: projectcalico.org/v3
kind: NetworkPolicy
metadata:
  name: zero-trust-api-server
  namespace: production
spec:
  selector: app == 'api-server'
  order: 100
  types:
    - Ingress
    - Egress

  ingress:
    - action: Allow
      source:
        selector: app == 'api-gateway'
        namespaceSelector: kubernetes.io/metadata.name == 'production'
      destination:
        ports:
          - 8080

  egress:
    - action: Allow
      destination:
        selector: app == 'database'
        namespaceSelector: kubernetes.io/metadata.name == 'production'
        ports:
          - 5432

    # Allow DNS
    - action: Allow
      protocol: UDP
      destination:
        namespaceSelector: kubernetes.io/metadata.name == 'kube-system'
        selector: k8s-app == 'kube-dns'
        ports:
          - 53

Egress 制御パターン

# Control outbound internet access
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: egress-internet-control
spec:
  selector: has(internet-access)
  order: 300
  types:
    - Egress

  egress:
    # Allow approved external services
    - action: Allow
      destination:
        domains:
          - "*.amazonaws.com"
          - api.github.com
          - registry.npmjs.org
      protocol: TCP
      destination:
        ports:
          - 443

    # Allow internal traffic
    - action: Allow
      destination:
        nets:
          - 10.0.0.0/8
          - 172.16.0.0/12
          - 192.168.0.0/16

---
# Block internet for unlabeled pods
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: egress-internet-deny
spec:
  selector: "!has(internet-access)"
  order: 400
  types:
    - Egress

  egress:
    # Allow internal only
    - action: Allow
      destination:
        nets:
          - 10.0.0.0/8
          - 172.16.0.0/12
          - 192.168.0.0/16

    # Deny external
    - action: Deny

Namespace 分離パターン

# Isolate namespaces by default
apiVersion: projectcalico.org/v3
kind: GlobalNetworkPolicy
metadata:
  name: namespace-isolation
spec:
  namespaceSelector: has(kubernetes.io/metadata.name)
  order: 800
  types:
    - Ingress

  ingress:
    # Allow same namespace
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == "$(namespace.name)"

    # Allow monitoring namespace
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'monitoring'
        selector: app in {'prometheus', 'grafana'}

    # Allow ingress namespace
    - action: Allow
      source:
        namespaceSelector: kubernetes.io/metadata.name == 'ingress-nginx'

---

Policy のパフォーマンスへの影響

パフォーマンスに関する考慮事項

要因	影響	緩和策
Policy の数	線形的なルール評価	階層化 Policy を使用し、selector を最適化
Selector の複雑さ	一致判定時間の増加	単純な label 一致を使用
IP set のサイズ	メモリ使用量	IP 範囲を集約する
Log の頻度	CPU とストレージ	大量トラフィックには sampling を使用
Connection tracking	stateful 接続のメモリ	stateless 接続には DoNotTrack を使用

最適化のヒント

1. 階層化 Policy を使用する: 最初に Deny ルールを評価する
2. Selector の複雑さを最小化する: set operation より equality を優先する
3. IP 範囲を集約する: 個別の IP ではなく CIDR block を使用する
4. GlobalNetworkSet を使用する: Policy 間で IP group を再利用する
5. Policy caching を有効にする: 最近の Calico version ではデフォルト

Policy パフォーマンスのベンチマーク

# Measure rule evaluation time
kubectl exec -n kube-system calico-node-xxxxx -c calico-node -- \
  calico-node -felix-ready

# Check dataplane programming time
kubectl logs -n kube-system -l k8s-app=calico-node -c calico-node | \
  grep "Policy sync"

# Monitor iptables rule count
iptables -L -n | wc -l

---

ベストプラクティスの要約

設計原則

1. デフォルト Deny から始める: 必要なトラフィックを Allow list に登録する
2. 最小権限を使用する: 必要な port と protocol のみを Allow する
3. Policy をレイヤー化する: Security -> Platform -> Application
4. 一貫して label を付ける: Policy targeting には標準 label を使用する
5. Policy を文書化する: 意図を説明する comment を含める

運用上の推奨事項

1. 最初に staging でテストする: production の前に Policy を検証する
2. audit mode を使用する: 新しい Policy を強制する前に Log を記録する
3. Policy hit count を監視する: 未使用のルールを特定する
4. 定期的に Policy をレビューする: 古いルールを削除する
5. Policy deployment を自動化する: Policy 管理に GitOps を使用する

セキュリティの推奨事項

1. metadata Service をブロックする: SSRF attack を防止する
2. Egress を制御する: 承認済み destination への外部アクセスを制限する
3. control plane を保護する: kube-system へのアクセスを制限する
4. logging を有効にする: deny された接続を監査する
5. FQDN Policy を使用する: 名前によって外部 Service へのアクセスを制御する

---

参考資料

• Calico Network Policy ドキュメント
• Kubernetes Network Policy
• Calico Policy チュートリアル
• Tigera Policy ベストプラクティス
